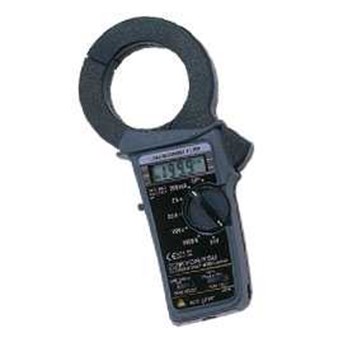

KYORITSU 2413F

• Extra wide transformer jaws are best suited for clamping on all three or four wires (3phases) together for leakage current measurement. • Frequency filter switch to eliminate the effect of harmonics. • Peak hold function. • Analogue output terminal. AC A (50/60Hz) : 200mA/2/20/200A/1000A |±1.5%rdg±2dgt (200mA/2/20A) |±2%rdg±2dgt (200A 0~500A) |±5.5%rdg (501~1000A) AC A (WIDE) : 200mA/2/20/200/1000A |±1%rdg±2dgt [50/60Hz], |±3%rdg±2dgt [40Hz~1kHz] (200mA/2/20A) |±1.5%rdg±2dgt [50/60Hz], |±3.5%rdg±2dgt [40Hz~1kHz] (200A/0~500A) |±5%rdg [50/60Hz], |±10%rdg [40Hz~1kHz] (501~1000A) Conductor Size : Ø68mm max. Effect of External Stray Magnetic Field Ø15mm 100A : 10mA AC max. Frequency Response : 40Hz~1kHz Output : AC/DC 200mV against 2000 count Withstand Voltage : 3700V AC for 1 minute Applicable Standard : IEC 61010-1 CAT.III 300V IEC 61010-2-032 Power Source : 6F22 (9V) × 1 *Continuous measuring time: Approx. 60 hours Dimensions : 250(L) × 130(W) × 50(D)mm Weight : 570g approx. Accessories : 9094 (Carrying Case) 6F22 × 1 Instruction Manual Optional : 7073 (2WAY Output Cord)
